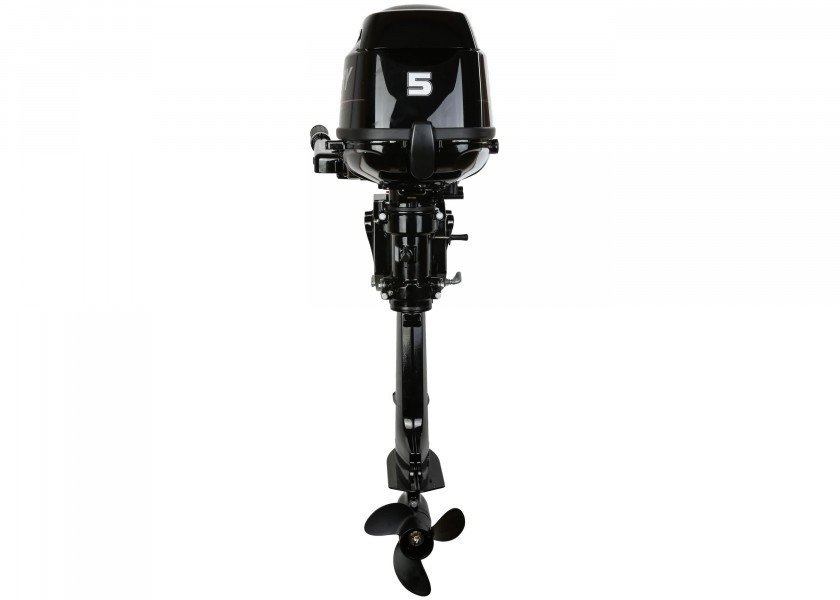

F5 MH Outboard Motor
Model no.
F5-MH
Description
Mercury – ME-F5MH EU Outboard Motor
Power
5 HP
Type of drive
Petrol
Shaft height
Short shaft
Start mode
Manual
Steering type
Tiller
Trim
Manual
Charging coil
No
External tank
Optional
Internal tank
Yes
Tank contents
1.1 l
Weight
25 kg
Shaft height
38.1 cm
Weighing just 25 kg, respectively, this 5 HP FourStroke outboarder is easy to lift and carry.
Shallow water
Multiple trim positions enhance performance and enable shallow-water operation.
Easy to start
Automatic decompression bleeds off cylinder pressure to reduce the pulling force required to start the engine.
Quiet
Through-prop exhaust on all Mercury® FourStrokes exits underwater for quiet operation.
Fueling options
Technical data:
| HP / kW | 5 / 3.7 |
| Engine type | 1 cylinder |
| Displacement (CID/CC) | 7.5 / 123 |
| Full throttle RPM | 4500-5500 |
| Fuel induction system | 2-valve pushrod (overhead valve) |
| Recommended fuel | 87% octane / up to 10% ethanol |
| Recommended oil | Mercury FourStroke oil 10W-30 |
| Engine protection operator warning system | Low oil pressure, Over-rev |
| Starting | Manual |
| Steering | Tiller |
| Shaft length | 435 mm |
| Gearcase ratio | 2.15:1 |
| Dry weight | 26 kg |
| CARB-star rating | 3 |
| Bore and stroke | 2.32 x 1.77″ / 59 x 45 mm |
| Ignition | CDI mit electronic spark advance |
| Fuel system | Carbureted |
| Cooling system | Water-cooled with thermostat |
| Gear shift | F-N-R |
| Gearcase options | Standard |
| Trim positions | 6 |
| Exhaust system | Through prop |
| Shallow water trim range (degrees) | 16 |
| Integrated fuel tank (gal/L) | 0.3 / 1.1 |
| Color | Phantom Black |
