DF 9.9B S Outboard Motor
Ergonomics and ease-of-use are key features of the DF9.9B. It comes with a sleek, clean design with no bulky parts that could cathc on lines or clothing.

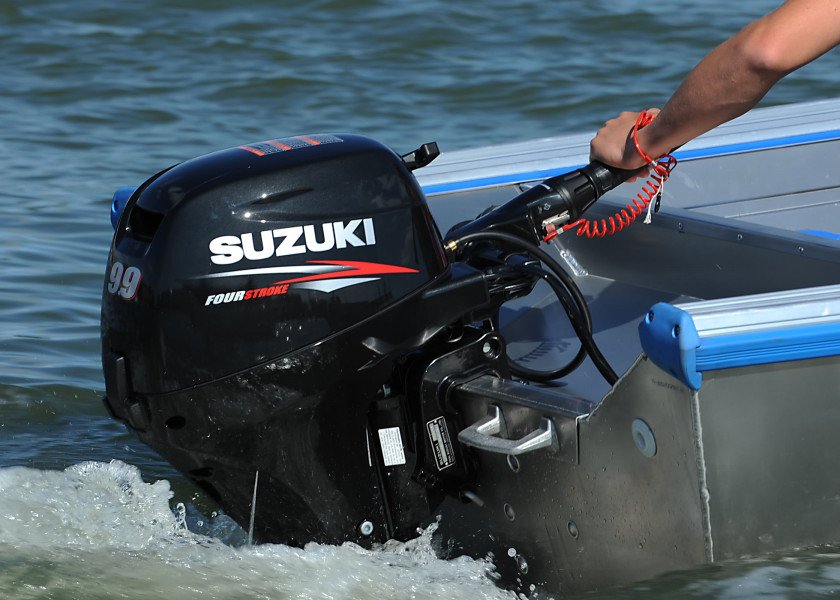

The tiller handle and the gears are centrally mounted with the emergency stop button on the handle itself. The engine monitoring LED display is located on the front panel. A decompression device facilitates manual starting.
Engine vibration is minimized by using large engine blocks. Other features, such as electronic overspeed trip control and delayed ignition timing for smoother running of the engine when the speed is lost too quickly are standard features.
These Suzuki outboard motors also meet the European EU 1 standard and can be used on Lake Constance.
| Dimensions & Weight | |
| Shaft length (mm) | S: 381 / L: 508 |
| Weight (kg) | S: 44 / L: 45 |
| Bore x stroke (mm) | 60.4 x 57.0 |
| Technical Specifications | |
| Number of cylinders | 2 in series |
| Fuel system | Battery-free sequential electronic fuel injection system |
| Displacement (cm³) | 327 |
| Max. power in kW (hp) | 7.3 (9.9) |
| Recommended speed range | 4700 – 5700 |
| Steering | Tiller |
| Oil filling quantity (L) | 1.0 |
| Fuel capacity (L) | 12 |
| Starting system | hand launch |
| Alternator | 12V 6A |
| Engine mounts | Rubber silent blocks |
| Trim | 60.4 x 57.0 |
| Gear | VNR |
| Exhaust | Prop exhaust |
Fuel tank, hoses and adapter are included.
